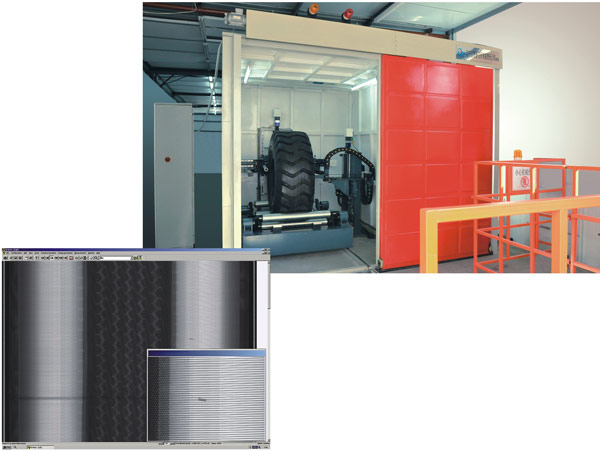

全自動X射線工程車輪胎檢測系統
X-ray inspection system for OTR tire
系統簡介：
Brief introduction
全自動X射線工程車輪胎檢測系統是工程車輪胎專用檢測設備。該系統由高頻高壓X射線系統、數字成像系統、機械運動系統、電氣控制系統、X射線防護系統、視頻監視系統等組成。
The system is designed for OTR tire. It includes high frequency and voltage X-ray system, digital imaging system, mechanical motion system, tire identifying system, control system, X-ray protection system, video monitor system and so on.
系統特點：
Characteristic
■高精密機械運動系統，使輪胎在檢測過程中具有較高的定位精度和速度控制，從而保證得到最好的圖像質量。
The tire can be controlled accurately during the inspection cycle due to the high precision motion mechanism. It can offer an excellent image.
■采用 CMOS線性探測器，動態范圍 12 bit。
CMOS detector with dynamic range 12bit
■圖像分辨率 1mm ,具有全屏滾動顯示功能。
Full-screen scrolling image with resolution 1mm
■采用移動的小車將輪胎自動送入鉛房，輪胎在小車上直接旋轉檢測的方式，從而避免了在鉛房?jī)?nèi)用吊車起吊輪胎而損傷設備和人員的風險。
The tire can be placed at its inspecting position automatically by the moving loader, which avoids the risk caused by using the hoisting machine in the lead cabin.
檢測范圍:
Inspection range
■輪胎外徑：1210-4500㎜
Outside diameter: 1210-4500mm
■輪胎內徑：24-63〞
Inside diameter: 24-63”
■斷面寬：300-1500㎜
Overall width: 300-1500mm
■輪胎重量：最大5000kg
Weight: Max. 5000kg
|
